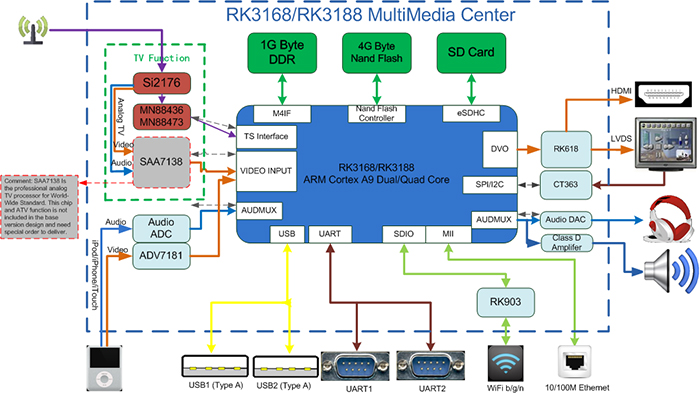

DESCRIPTION

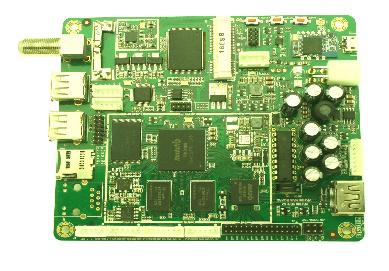

VP3188 main board is based on Rochchip RK3188 designed. RK3188 is a low power, high performance processor for
mobile phones, personal mobile internet device and other digital multimedia applications, and integrates quad-core
Cortex-A9 with separately NEON and FPU coprocessor. VP3188 also built in a worldwide analog and digital TV
applications. It is a suitable solution for fitness machine and other industrial equipments.
FEATURES
CPU Rockchip RK3188 1.8GHz Quad core
GPU Mali400 2D/ 3D/ OpenGL ES2.0/ OpenVG1.1. Video Decoding: Support
1920x1080p@60fps, Video Encoding: Support encoding in H.264.
1080p@60fps, 720@100fps
Operation System Android 4.2
RAM 1GB
Nand flash 4GB
External storage TF card, up 32GB
Wi-Fi Wi-Fi 802.11n b/g/n
Bluetooth BT2.1+EDR/BT3.0 , BT4.0
HDMI Interface Support 1920x1080P @60Hz Full HD video output
LVDS Interface Double LVDS interface, Support 1080P Full HD panel
Ethernet 10/100M
Analog TV PAL/NTSC/SECAM
Digital TV ATSC/QAM; DVB-T/C/T2; ISDB-T
Video Input YPbPr(480P) or CVBS
Audio output 4W@4ohm, 0.5W@32ohm, MAX
Ports 4x USB 2.0 Host
1x USB slave
1x TF card slot
1x AV input
1x LVDS
1x Back light
1x HDMI
2x I2C
1x SPI
10x GPIO
3x RS232
1x Ethernet
1x Keypad
1x RF in
1x Wi-Fi antenna
1xMIC
1x Power in
4 of 11

APPLICATIONS
Fitness machine
Mini PC, Smart TV
Other industrial applications
