DESCRIPTION

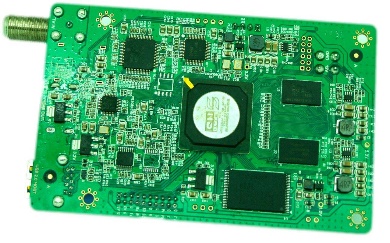

The VP9016 is a hybrid TV board which supports almost worldwide terrestrial and cable TV standards. The board has both SD&HD analog video and HDMI output, the board also supports simple control method. It's suitable solution for add-on TV application.

FEATURES

Analog TV: NTSC, PAL/SECAM
Digital TV: ATSC/QAM-B, DVB-T/T2/C, ISDB-T
Pro:Idiom Decryption
OS: linux
32 bit true color OSD
Flexible control method: IR/I2C/UART
CVBS+YPBPR+HDMI video output
Weekly EPG
Closed caption and teletext
Power supply: DC 12V only
PCB Size: 110*68mm
Customized demand is available

APPLICATIONS

Fitness machine
Others TV application

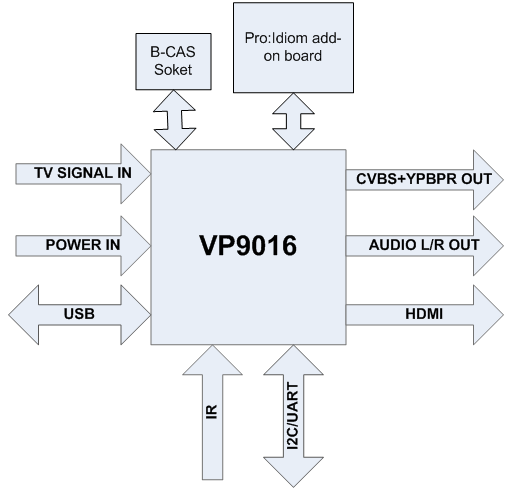

BLOCK
